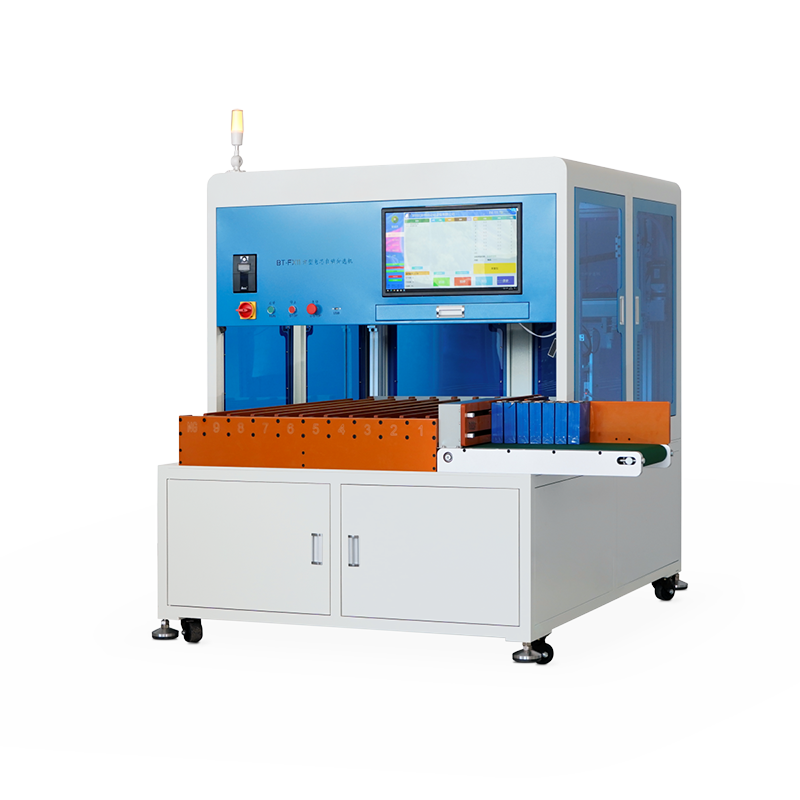

BT-FX11 Square Aluminum Shell Battery Cell Automatic Sorting Machine
2025-11-20 15:37:21
Product features：
Test the interal voltage resistance of the prismatic aluminum shell cell
Automatically divide according to the set voltage intemal resistance value
一、Main function
Test the interal voltage resistance of the prismatic aluminum shell cell
Automatically divide according to the set voltage intemal resistance value
二、Product characteristics
Automatic production quantity collection,show the current productionefficiency
Test data can be stored using a USB stick and transferred to a computerOptional dynamic testing device for power cell can realize the quality and load performance of power cell
Equipment debugging is simple, easy to leam, easy to understand withthe fault alarm
三、Product parameters
Power | AC220V 50/60HZ 2KW | 电压设定 Voltage | 0.00000V-6.0000V, | ||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is a fiter device to ensure that the fiow of water-free impurities | Intemal resistance | 000.00mΩ-999.99mΩ | ||
Optional Gear | 9OK,1NG | ||||
Standard test instrument | HK3560 | Test Data | tcan save Exel tables and supports readng oruplbasdng test data | ||
Optional tester | HIOK13561/HIOK13562/HK3561 | Communication Interface | RS485/232/TCP | ||
Control device | PLCplus Industial Control Computer | Test method | 4wire system | ||
Run power | 750W Servo electic | Test pin | 0.3KG | ||
Adaptive cell range | Pnsmatc aluminum shell cell: L50-200MM W15-50MM H60-200MM | Equipment dimensions | L1840*W1840^H1800MM | ||
Productivity | About 2000PCS cels/hour | Weight | 450KG | ||
